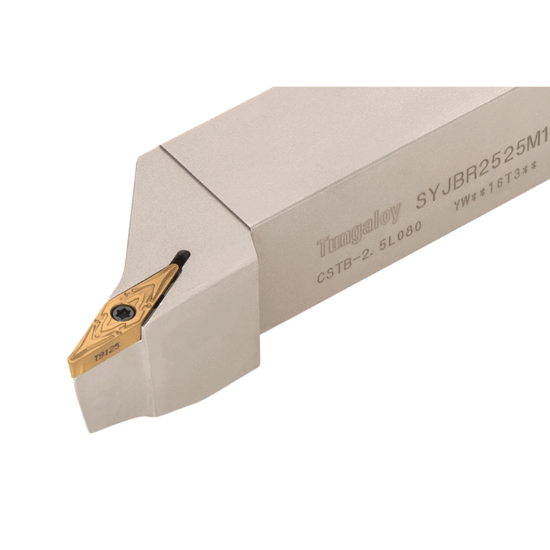

Picture of TUNGALOY SYJBR123 Stick Tool 25.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY SYJBR123 Stick Tool 25.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: SYJBR123

ISO: SYJBR123

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856594
Delivery date: 3-5 days
$129.75

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Overall Len 4.5000 114.30MM
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 16 "33"
Clearance Angle 60.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 93°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 25.0°
Insert Style YW
Inter/Extern External
Hand R/L Right
