  • TUNGALOY SYIBN163 Stick Tool 25.0° Insert Posi,I style, 76.5deg Approach , Steel Square 1.000 Shank

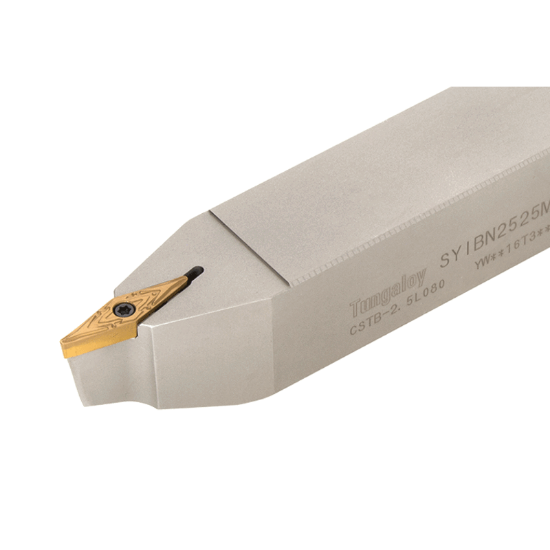

Picture of TUNGALOY SYIBN163 Stick Tool 25.0° Insert Posi,I style, 76.5deg Approach , Steel Square 1.000 Shank

TUNGALOY SYIBN163 Stick Tool 25.0° Insert Posi,I style, 76.5deg Approach , Steel Square 1.000 Shank

ANSI: SYIBN163

ISO: SYIBN163

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856595
Delivery date: 3-5 days
$160.10

Important Notes

Posi,I style, 76.5deg Approach

Details

Screw-on clamp toolholder with 77.5deg approach angle, for positive 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 77.5°
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style YW
Insert Shape/Cutter Pocket Shape 25.0°
Inter/Extern External
Hand R/L Neutral
