  • TUNGALOY SYIBN123 Stick Tool 25.0° Insert Posi,I style, 76.5deg Approach , Steel Square 0.750 Shank

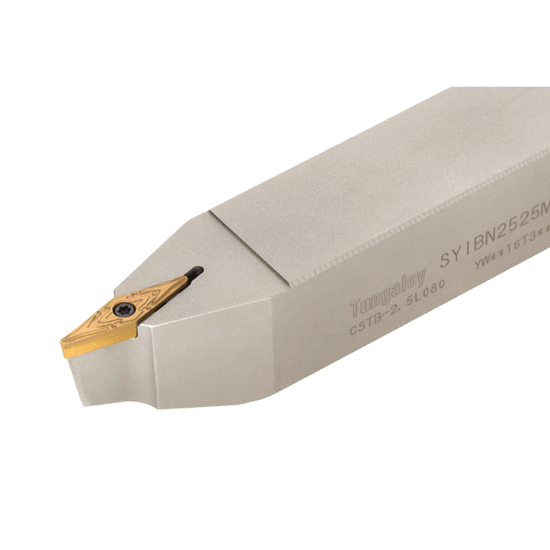

Picture of TUNGALOY SYIBN123 Stick Tool 25.0° Insert Posi,I style, 76.5deg Approach , Steel Square 0.750 Shank

TUNGALOY SYIBN123 Stick Tool 25.0° Insert Posi,I style, 76.5deg Approach , Steel Square 0.750 Shank

ANSI: SYIBN123

ISO: SYIBN123

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856593
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Posi,I style, 76.5deg Approach

Details

Screw-on clamp toolholder with 77.5deg approach angle, for positive 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Lead Angle 77.5°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Style YW
Insert Shape/Cutter Pocket Shape 25.0°
Inter/Extern External
Hand R/L Neutral
