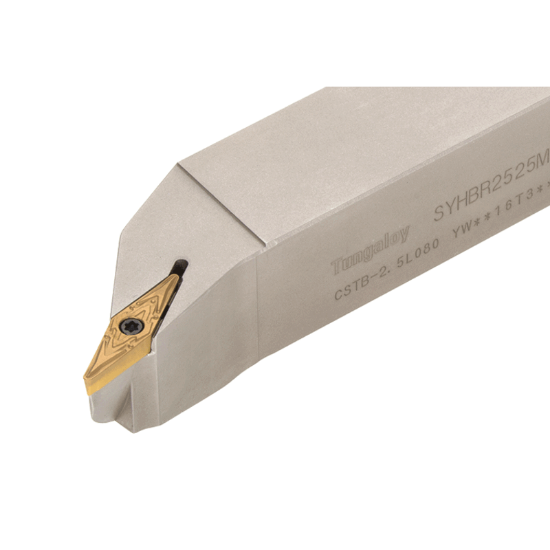

Picture of TUNGALOY SYHBR163 Stick Tool 25.0° Insert Posi,H style, 100deg Approach , Steel Square 1.000 Shank

TUNGALOY SYHBR163 Stick Tool 25.0° Insert Posi,H style, 100deg Approach , Steel Square 1.000 Shank

ANSI: SYHBR163

ISO: SYHBR163

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856614
Delivery date: 3-5 days
$160.10

Important Notes

Posi,H style, 100deg Approach

Details

Screw-on clamp toolholder with 100deg approach angle, for positive 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Clearance Angle 53.0°
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "33"
Lead Angle 100°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Style YW
Insert Shape/Cutter Pocket Shape 25.0°
Hand R/L Right
