TUNGALOY SYHBR123 Stick Tool 25.0° Insert Posi,H style, 100deg Approach , Steel Square 0.750 Shank

ANSI: SYHBR123

ISO: SYHBR123

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856611
Delivery date: 3-5 days
$139.50

Important Notes

Posi,H style, 100deg Approach

Details

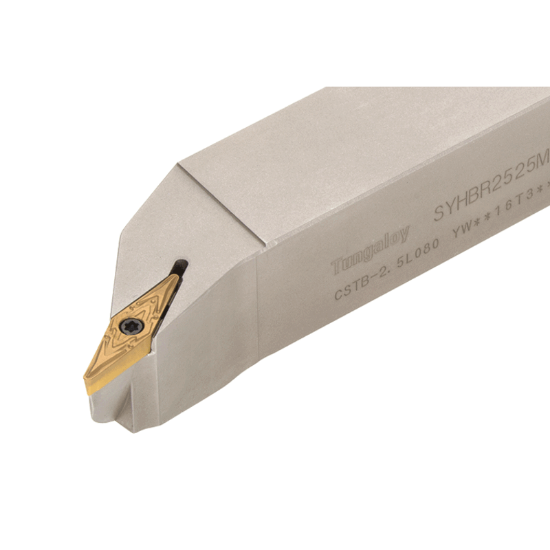

Screw-on clamp toolholder with 100deg approach angle, for positive 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ext.Turning
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Clearance Angle 53.0°
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Lead Angle 100°
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 25.0°
Inter/Extern External
Insert Style YW
