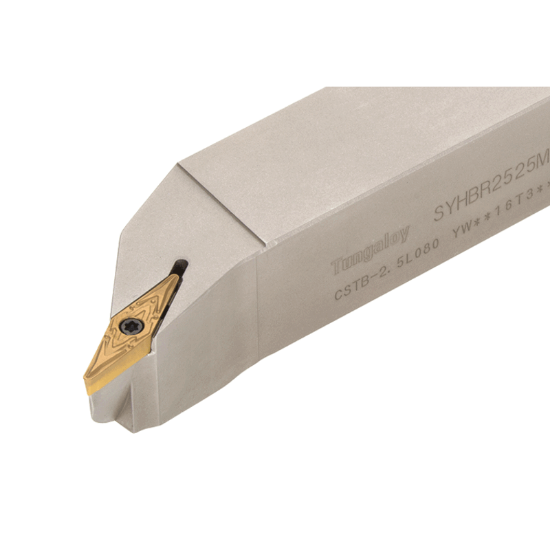

Picture of TUNGALOY SYHBL123 Stick Tool 25.0° Insert Posi,H style, 100deg Approach , Steel Square 0.750 Shank

TUNGALOY SYHBL123 Stick Tool 25.0° Insert Posi,H style, 100deg Approach , Steel Square 0.750 Shank

ANSI: SYHBL123

ISO: SYHBL123

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6856613
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Posi,H style, 100deg Approach

Details

Screw-on clamp toolholder with 100deg approach angle, for positive 25deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 53.0°
Overall Len 4.5000 114.30MM
Insert Size Ic 16 "33"
Lead Angle 100°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 25.0°
Hand R/L Left
Insert Style YW
Inter/Extern External
