  • TUNGALOY SVVCN2525M16 Stick Tool 35.0° Insert Posi,V style, 72.5deg Approach , Steel Square 0.984 Shank

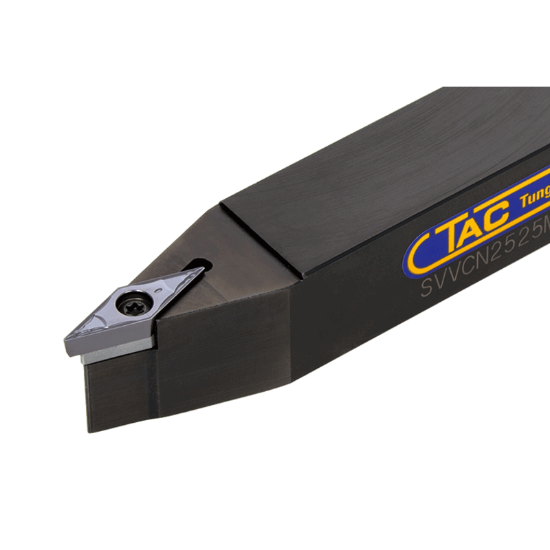

Picture of TUNGALOY SVVCN2525M16 Stick Tool 35.0° Insert Posi,V style, 72.5deg Approach , Steel Square 0.984 Shank

TUNGALOY SVVCN2525M16 Stick Tool 35.0° Insert Posi,V style, 72.5deg Approach , Steel Square 0.984 Shank

ANSI: SVVCN2525M16

ISO: SVVCN2525M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807433
Delivery date: 3-5 days
$160.10

Important Notes

Posi,V style, 72.5deg Approach

Details

Screw-on clamp toolholder with 72.5deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Clearance Angle 70.0°
Tool Material Steel
Insert Size Ic 16 "33"
Lead Angle 72.5°
Overall Len 5.9055 150.00MM
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Neutral
Insert Style VC
Inter/Extern External
