  • TUNGALOY SVQCL2020K16 Stick Tool 35.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 0.787 Shank

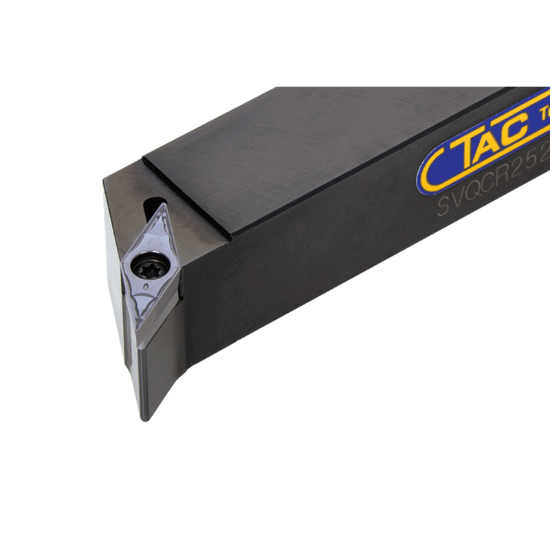

Picture of TUNGALOY SVQCL2020K16 Stick Tool 35.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 0.787 Shank

TUNGALOY SVQCL2020K16 Stick Tool 35.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 0.787 Shank

ANSI: SVQCL2020K16

ISO: SVQCL2020K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807428
Delivery date: 3-5 days
$138.10

Important Notes

Posi,Q/H style, 45deg Approach

Details

Screw-on clamp toolholder with 117.5deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 4.9213 125.00MM
Lead Angle 117.5°
Clearance Angle 25.0°
Insert Size Ic 16 "33"
Machine Side Connection Size 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Insert Style VC
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
