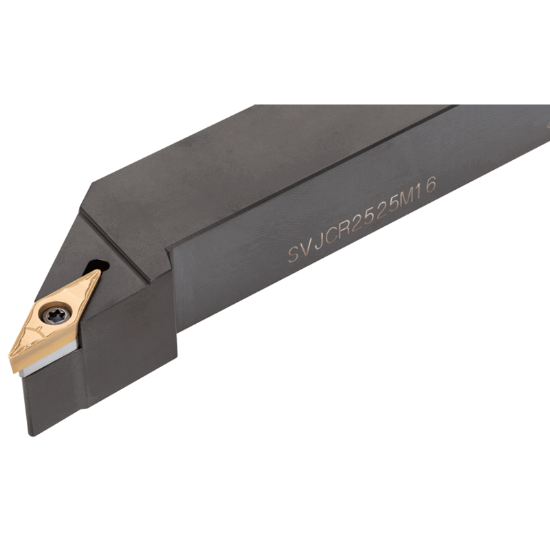

Picture of TUNGALOY SVJCR163 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 1.000 Shank

TUNGALOY SVJCR163 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 1.000 Shank

ANSI: SVJCR163

ISO: SVJCR163

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6851343
Delivery date: 3-5 days
$160.10

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Overall Len 6.0000 152.40MM
Insert Size Ic 16 "33"
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 50.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VC
