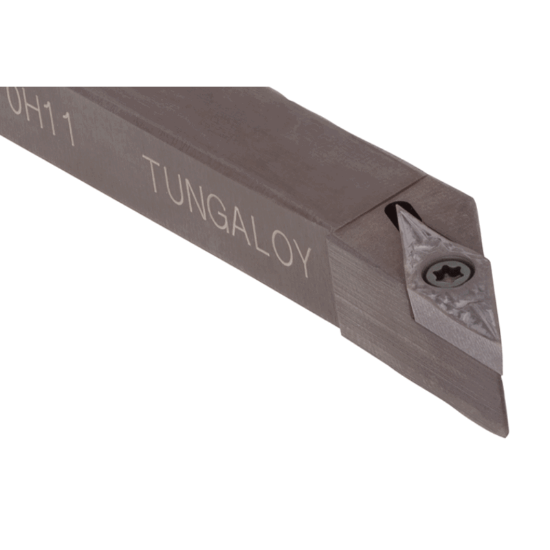

Picture of TUNGALOY SVJBR163 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 1.000 Shank

TUNGALOY SVJBR163 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 1.000 Shank

ANSI: SVJBR163

ISO: SVJBR163

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6885432
Delivery date: 3-5 days
$160.10

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 35deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Clearance Angle 50.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 5.0000 127.00MM
Insert Size Ic 16 "33"
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Insert Style VB
