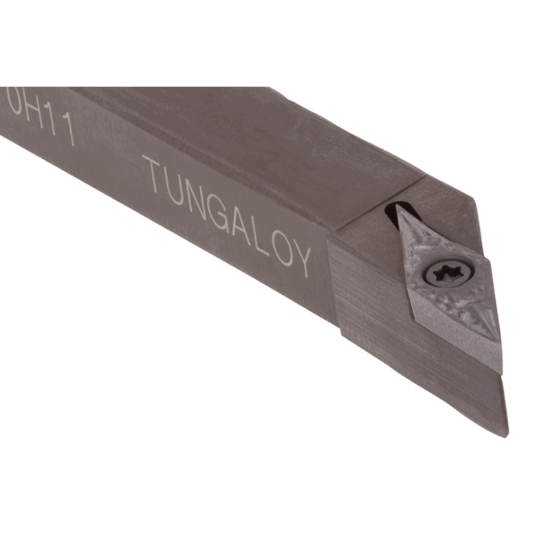

Picture of TUNGALOY SVJBL163 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 1.000 Shank

TUNGALOY SVJBL163 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 1.000 Shank

ANSI: SVJBL163

ISO: SVJBL163

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6885433
Delivery date: 3-5 days
$160.10

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 35deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning
Package Size 1
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 50.0°
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "33"
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
Insert Style VB
