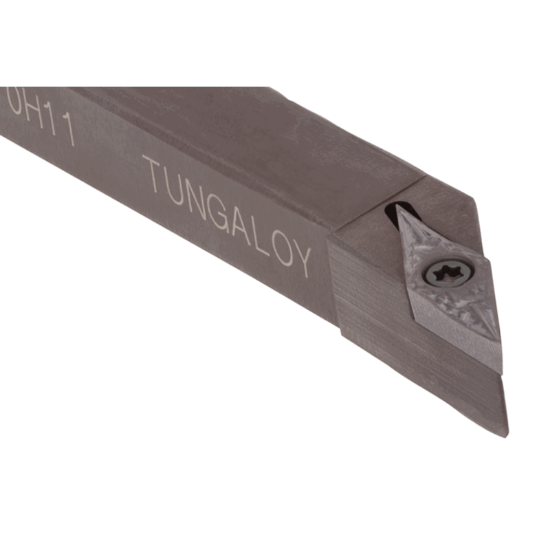

Picture of TUNGALOY SVJBL122 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY SVJBL122 Stick Tool 35.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: SVJBL122

ISO: SVJBL122

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6885431
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 35deg rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 50.0°
Overall Len 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 93°
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VB
Hand R/L Left
