  • TUNGALOY SVHCR2525M22 Stick Tool 35.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 0.984 Shank

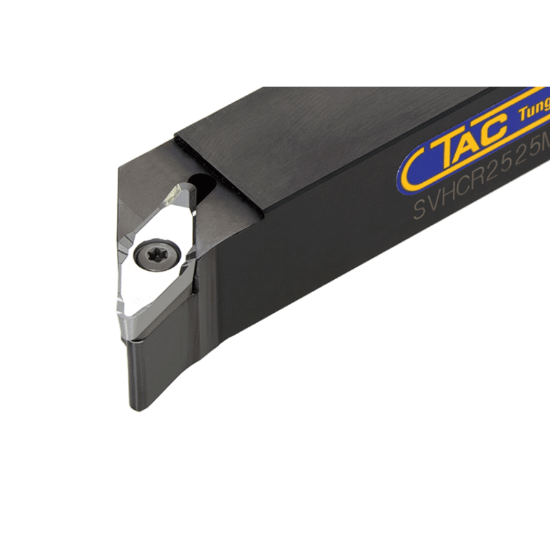

Picture of TUNGALOY SVHCR2525M22 Stick Tool 35.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY SVHCR2525M22 Stick Tool 35.0° Insert Posi,Q/H style, 45deg Approach , Steel Square 0.984 Shank

ANSI: SVHCR2525M22

ISO: SVHCR2525M22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807397
Delivery date: 3-5 days
$158.70

Important Notes

Posi,Q/H style, 45deg Approach

Details

Screw-on clamp toolholder with 107.5deg approach angle, for positive 35deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 107.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Clearance Angle 15.0°
Overall Len 5.9055 150.00MM
Insert Size Ic 11 "21"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VC
Hand R/L Right
