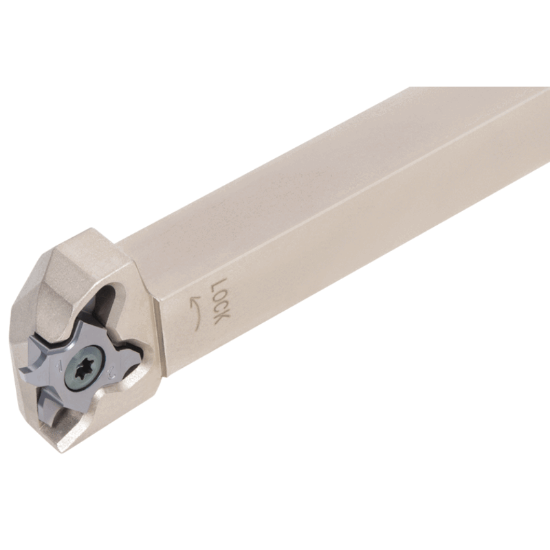

Picture of TUNGALOY STCL16-18 On Edge Grooving,Groove Threading Stick Tool Steel Square 1.000 Shank

TUNGALOY STCL16-18 On Edge Grooving,Groove Threading Stick Tool Steel Square 1.000 Shank

ANSI: STCL16-18

ISO: STCL16-18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6734573
Delivery date: 3-5 days
$188.95

Details

Precision external grooving and threading tools with uniquely shaped insert for Swiss-tooling or Automatic lathes

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Application Swiss, Ext.Grooving, Ext.Threading
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 18
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.5000 139.70MM
Cutting & Machining Properties
Hand R/L Left
Insert Style TC
Insert Shape/Cutter Pocket Shape Other
Inter/Extern External
