  • TUNGALOY SSDCN1616H09 Stick Tool Square Insert Posi,D style, 45deg Approach , Steel Square 0.629 Shank

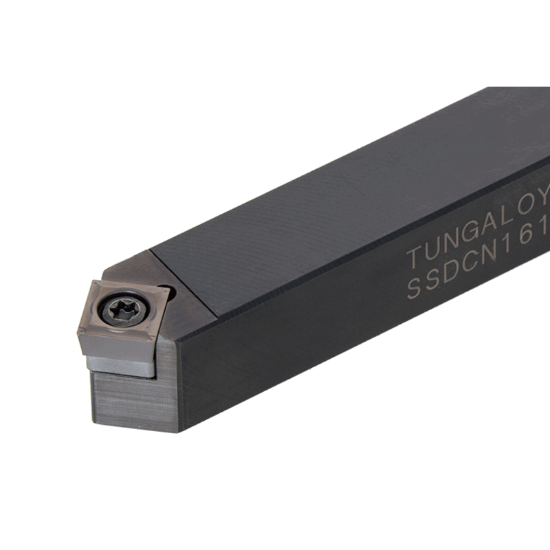

Picture of TUNGALOY SSDCN1616H09 Stick Tool Square Insert Posi,D style, 45deg Approach , Steel Square 0.629 Shank

TUNGALOY SSDCN1616H09 Stick Tool Square Insert Posi,D style, 45deg Approach , Steel Square 0.629 Shank

ANSI: SSDCN1616H09

ISO: SSDCN1616H09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6807320
Delivery date: 3-5 days
$125.75

Important Notes

Posi,D style, 45deg Approach

Details

Screw-on clamp toolholder with 45deg approach angle, for positive square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Ext.Turning
Insert/Tool Tool
Dimensional Specifications
Lead Angle 45°
Insert Size Ic 09 "32"
Overall Len 3.9370 100.00MM
Shank/Pilot Dia 0.6299 16.00MM
Clearance Angle 40.0°
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style SC
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape Square
Inter/Extern External
