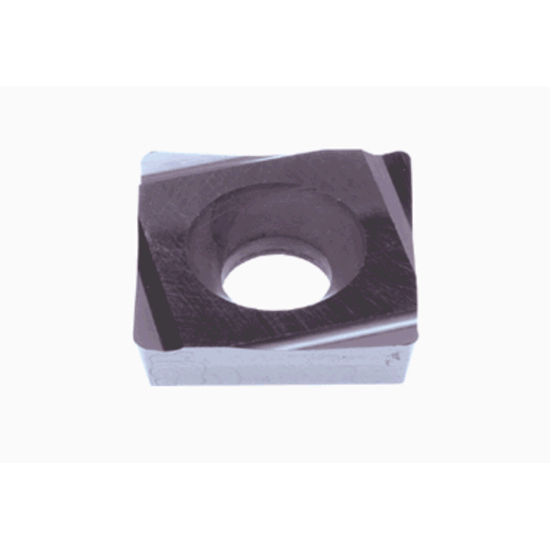

Picture of TUNGALOY SPGM 421 L NS9530 Insert Square 0.016 Corner Radius

TUNGALOY SPGM 421 L NS9530 Insert Square 0.016 Corner Radius

ANSI: SPGM 421 L NS9530

ISO: SPGM 120304 L NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6997943
Delivery date: 3-5 days
$23.19

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Positive 11deg relief ang., G class, square insert, lead type chipbreaker for finishing to medium cutting

File Downloads

DXFSTPSTPL

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Shipping State Illinois
Package Size 10
Application Turning Insert
Grade NS9530
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 12 "42"
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cutting Edge Mat Cermet
Insert Style SP
