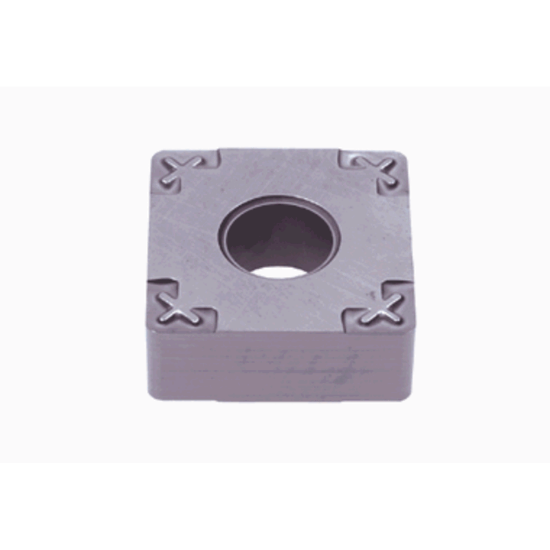

Picture of TUNGALOY SNGG432-01 NS520 Insert Square 0.031 Corner Radius

TUNGALOY SNGG432-01 NS520 Insert Square 0.031 Corner Radius

ANSI: SNGG432-01 NS520

ISO: SNGG120408-01 NS520

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6806522
Delivery date: 3-5 days
$13.26

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Finish turning of various steels and cast irons. Highly tough and wear resistant cermet for high speed finishing. Capable of running in wet cutting.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Application Turning Insert
Made In USA No
Package Size 10
Insert/Tool Insert
Grade NS520
Dimensional Specifications
Corner Radius 0.0315 0.80MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Style SN
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Square
