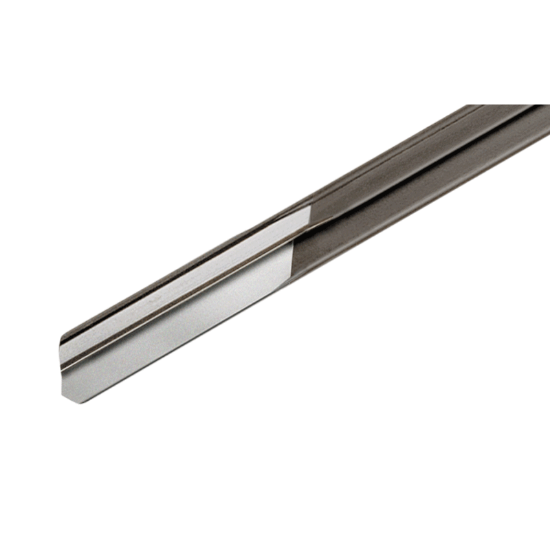

TUNGALOY SLJ1210L1250NA G2F 0.4763" Brazed GunDrill s

ISO: SLJ1210L1250NA G2F

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6990937
Delivery date: 3-5 days
$457.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Gun Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Boring Bar,Weldon
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.4764 12.10MM
Tool Material Carbide
Cutter Dia 0.4764 12.10MM
Machine Side Connection Size 0.7500 19.05MM
Flute Length 46.0630 1170.00MM
Overall Len 49.2130 1250.01MM
Flutes/Inserts 1
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
