  • TUNGALOY SDJCR2525M11 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.984 Shank

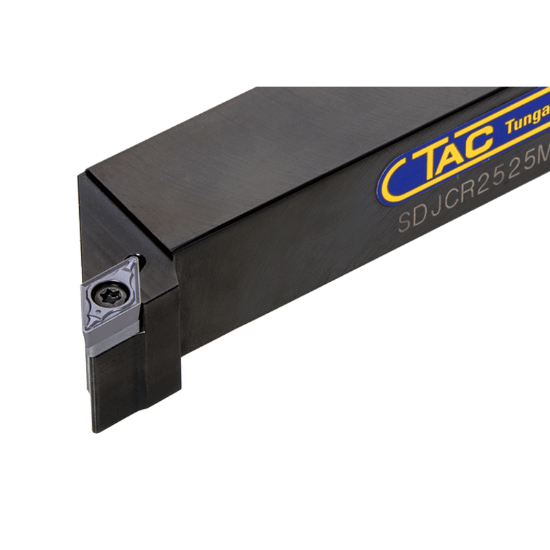

Picture of TUNGALOY SDJCR2525M11 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY SDJCR2525M11 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: SDJCR2525M11

ISO: SDJCR2525M11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6806206
Delivery date: 3-5 days
$128.25

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Clearance Angle 27.0°
Lead Angle 93°
Overall Len 5.9055 150.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 11 "32"
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Inter/Extern External
