  • TUNGALOY SDJCR1616H11 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

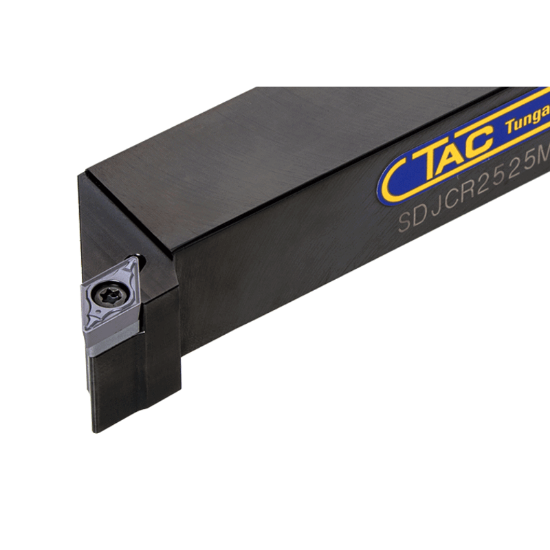

Picture of TUNGALOY SDJCR1616H11 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

TUNGALOY SDJCR1616H11 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.629 Shank

ANSI: SDJCR1616H11

ISO: SDJCR1616H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6806204
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 0.6299 16.00MM
Clearance Angle 27.0°
Overall Len 3.9370 100.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 11 "32"
Machine Side Connection Size 0.6299 16.00MM
Lead Angle 93°
Cutting & Machining Properties
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
