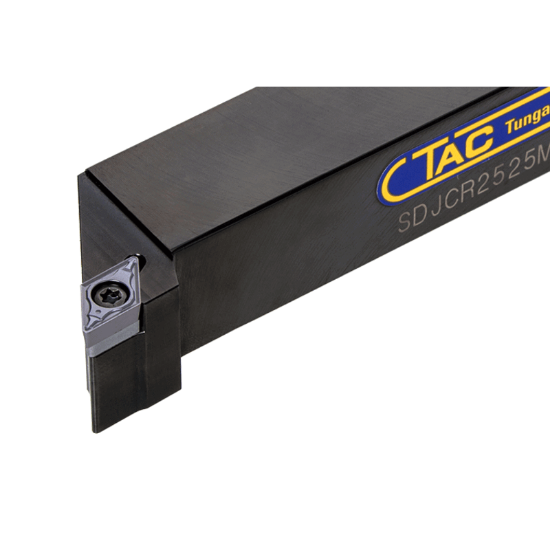

Picture of TUNGALOY SDJCR123 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY SDJCR123 Stick Tool 55.0° Insert Posi,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: SDJCR123

ISO: SDJCR123

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864107
Delivery date: 3-5 days
$131.90

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 4.5000 114.30MM
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Insert Size Ic 11 "32"
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Insert Style DC
