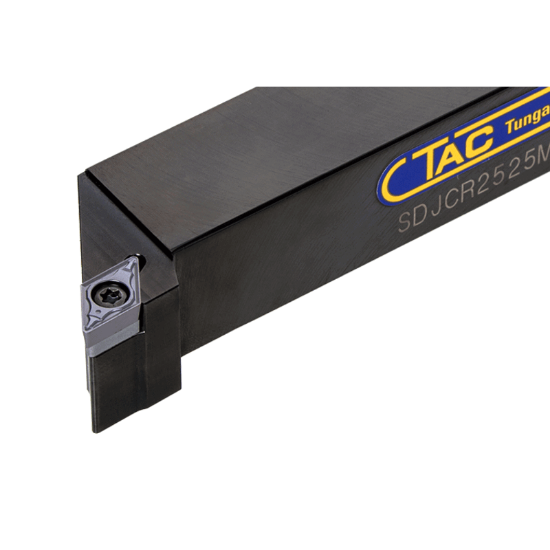

Picture of TUNGALOY SDJCR082 Stick Tool 55.0° Posi,J style, 93deg Approach , Steel Square 0.500 Shank

TUNGALOY SDJCR082 Stick Tool 55.0° Posi,J style, 93deg Approach , Steel Square 0.500 Shank

ANSI: SDJCR082

ISO: SDJCR082

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6864106
Delivery date: 3-5 days
$125.75

Important Notes

Posi,J style, 93deg Approach

Details

Screw-on clamp toolholder with 93deg approach angle, for positive 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Lead Angle 93°
Overall Len 3.5000 88.90MM
Clearance Angle 27.0°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 07 "21"
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Hand R/L Right
Inter/Extern External
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
