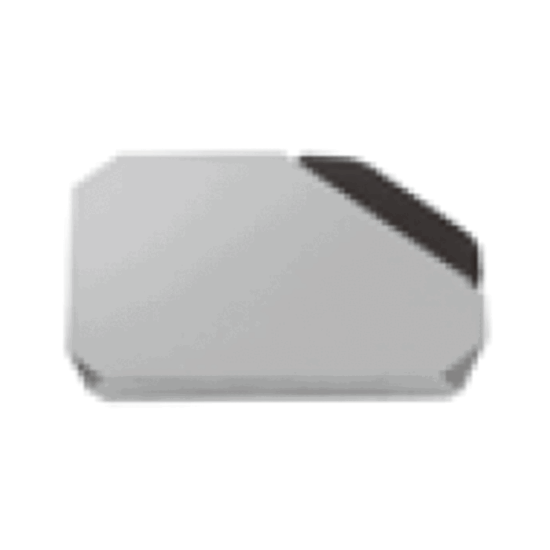

Picture of TUNGALOY SDCX1203AEFR-WD DX140 Milling Insert Square PCD Chamf Corner Radius

TUNGALOY SDCX1203AEFR-WD DX140 Milling Insert Square PCD Chamf Corner Radius

ANSI: SDCX1203AEFR-WD DX140

ISO: SDCX1203AEFR-WD DX140

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6809559
Delivery date: 3-5 days
$218.75

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Grade and Coating Description

PCD grade for general purpose machining of non-fer rous metals and nonmetals.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Milling Insert
Package Size 10
Insert Application Roughing, Semi Finishing
Grade DX140
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 120
Depth Of Cut Max 0.0200
Cut Rating Aluminum, Gray Iron, High Temp
Cutting & Machining Properties
Insert Style SD
Cutting Edge Mat PCD
Insert Shape/Cutter Pocket Shape Square
