  • TUNGALOY SCLCR1616H09 Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

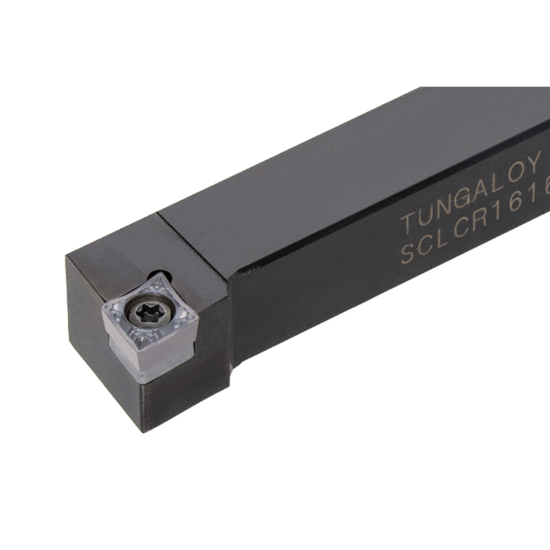

Picture of TUNGALOY SCLCR1616H09 Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

TUNGALOY SCLCR1616H09 Stick Tool 80.0° Insert Posi,L style, 95deg Approach , Steel Square 0.629 Shank

ANSI: SCLCR1616H09

ISO: SCLCR1616H09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6806118
Delivery date: 3-5 days
$125.75

Important Notes

Posi,L style, 95deg Approach

Details

Screw-on clamp toolholder with 95deg approach angle, for positive 80deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Insert Size Ic 09 "32"
Machine Side Connection Type Stick Tool
Overall Len 3.9370 100.00MM
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
Inter/Extern External
Hand R/L Right
