  • TUNGALOY S16-TLANR12-D34 Boring Bar On Edge Insert Neg,A style, 91deg Approach , Steel Round 1.000 Shank

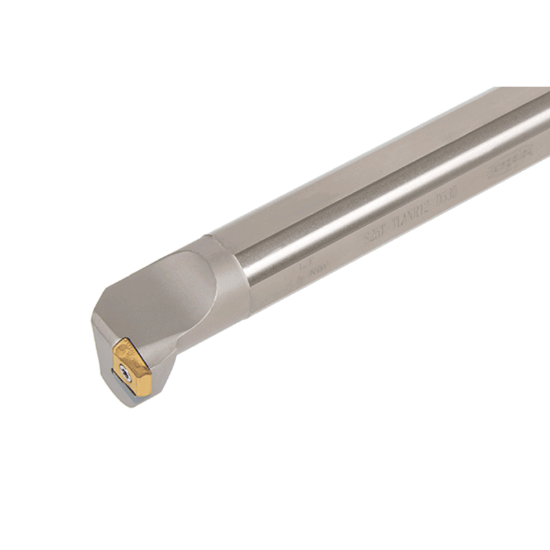

Picture of TUNGALOY S16-TLANR12-D34 Boring Bar On Edge Insert Neg,A style, 91deg Approach , Steel Round 1.000 Shank

TUNGALOY S16-TLANR12-D34 Boring Bar On Edge Insert Neg,A style, 91deg Approach , Steel Round 1.000 Shank

ANSI: S16-TLANR12-D34

ISO: S16-TLANR12-D34

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6865664
Delivery date: 3-5 days
$588.40

Important Notes

Neg,A style, 91deg Approach

Details

Screw-on clamp toolholder with tangential insert for roughing operation

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Application Int.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Lead Angle 91°
Min Bore 2.0900
Insert Size Ic 12
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style LN
Inter/Extern Internal
