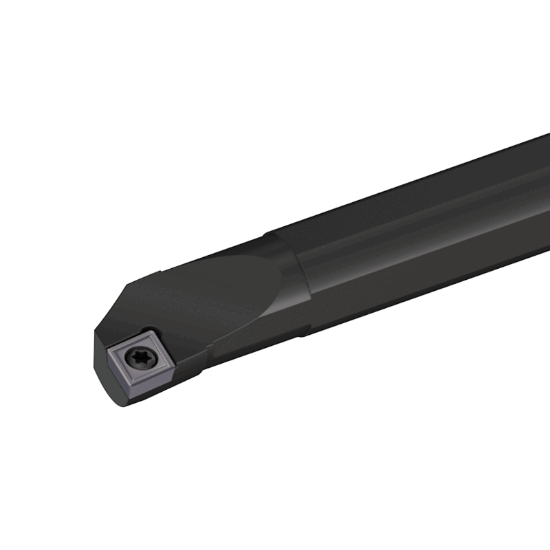

Picture of TUNGALOY S08-SCLCL2 Boring Bar 80.0° Insert Posi,L style, 95deg Approach , Steel Round 0.500 Shank

TUNGALOY S08-SCLCL2 Boring Bar 80.0° Insert Posi,L style, 95deg Approach , Steel Round 0.500 Shank

ANSI: S08-SCLCL2

ISO: S08-SCLCL2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805941
Delivery date: 3-5 days
$134.90

Important Notes

Posi,L style, 95deg Approach

Details

Screw-on boring bars, for Posi 80deg rhombic insert with 7 deg relief angle

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Int.Turning
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.5000 12.70MM
Tool Material Steel
Overall Len 6.0000 152.40MM
Min Bore 0.6250
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style CC
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
