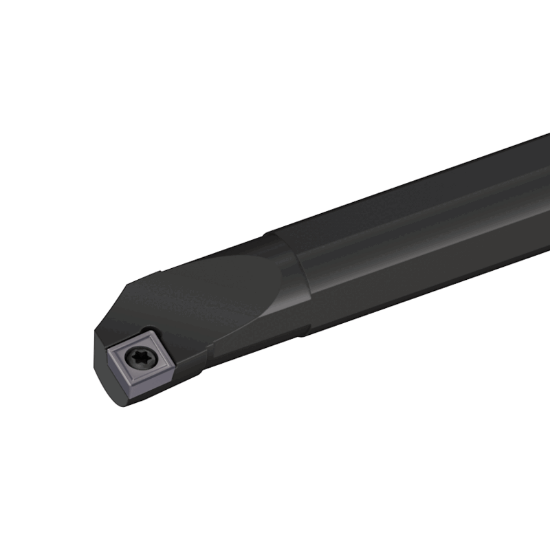

Picture of TUNGALOY S06-SCLCL2 Boring Bar 80.0° Insert Posi,L style, 95deg Approach , Steel Round 0.375 Shank

TUNGALOY S06-SCLCL2 Boring Bar 80.0° Insert Posi,L style, 95deg Approach , Steel Round 0.375 Shank

ANSI: S06-SCLCL2

ISO: S06-SCLCL2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805918
Delivery date: 3-5 days
$134.90

Important Notes

Posi,L style, 95deg Approach

Details

Screw-on boring bars, for Posi 80deg rhombic insert with 7 deg relief angle

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Tool Material Steel
Lead Angle 95°
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Min Bore 0.5000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern Internal
Insert Style CC
