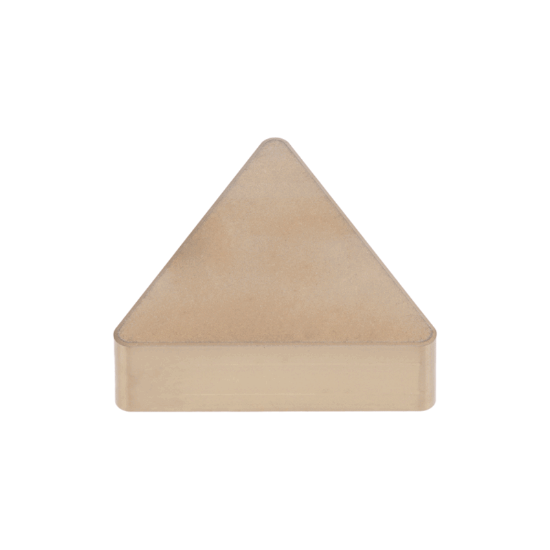

Picture of TUNGALOY S-TNGN 332 BXC90 Insert Triangle TiN 0.031 Corner Radius

TUNGALOY S-TNGN 332 BXC90 Insert Triangle TiN 0.031 Corner Radius

ANSI: S-TNGN 332 BXC90

ISO: S-TNGN 332 BXC90

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6822076
Delivery date: 3-5 days
$312.78

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Grade and Coating Description

Coated T-CBN for high-speed machining of cast iron

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Coating TiN
Package Size 10
Grade BXC90
Insert Application Semi Finishing, Roughing
Application Turning Insert
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Style TN
Insert Shape/Cutter Pocket Shape 60.0°
Cutting Edge Mat CBN
