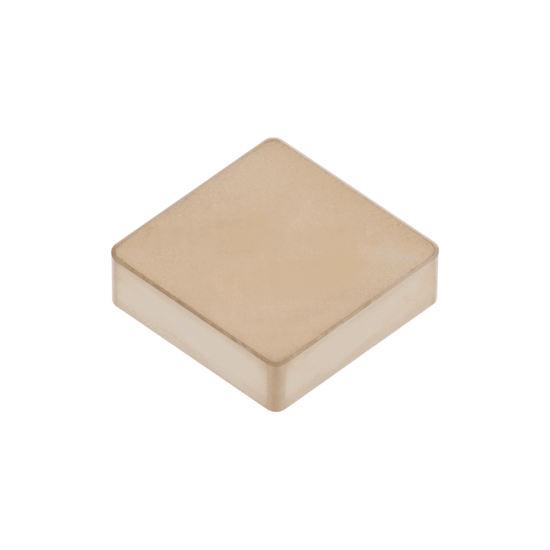

Picture of TUNGALOY S-CNGN 432 BXC90 Insert 80.0° TiN 0.031 Corner Radius

TUNGALOY S-CNGN 432 BXC90 Insert 80.0° TiN 0.031 Corner Radius

ANSI: S-CNGN 432 BXC90

ISO: S-CNGN120408 BXC90

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6822064
Delivery date: 3-5 days
$388.44

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Negative relief ang., G class, 80deg rhombic CBN insert

Grade and Coating Description

Coated T-CBN for high-speed machining of cast iron

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Coating TiN
Grade BXC90
Insert Application Semi Finishing, Roughing
Application Turning Insert
Package Size 10
Dimensional Specifications
Insert Size Ic 12 "43"
Corner Radius 0.0310 0.79MM
Cut Rating Ductile Iron, Gray Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat CBN
