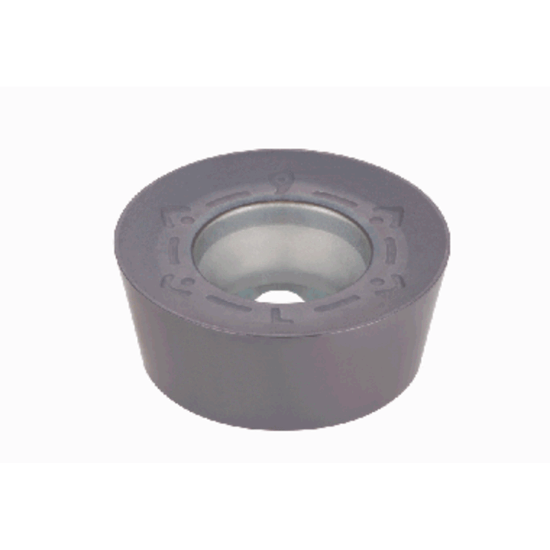

TUNGALOY RPMT1204EN-ML AH4035 Milling Insert Round AlTiN Carbide 0.236 Corner Radius

ANSI: RPMT1204EN-ML AH4035

ISO: RPMT1204EN-ML AH4035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6987873
Delivery date: 3-5 days
$12.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL

Grade and Coating Description

AH4035 is the new developed grade for stainless steel machining. AH4035 is superior to the conventional grades in wear resistance, fracture resistance and chip welding resistance.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Milling Insert
Insert Type Positive
Grade AH4035
Package Size 10
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Coating AlTiN
Dimensional Specifications
Insert Size Ic 12
Depth Of Cut Max 0.2360
Cut Rating Stainless
Corner Radius 0.2360 5.99MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Style RP
Insert Shape/Cutter Pocket Shape Round
