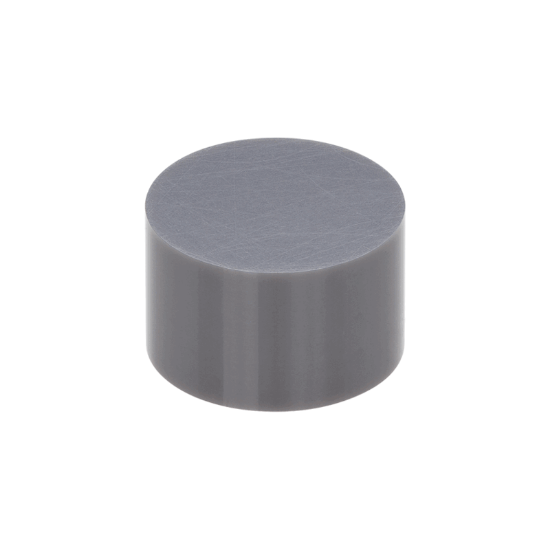

Picture of TUNGALOY RNGN45-T1 TS200 Milling Insert Round SiAlON Ceramic 0.250 Corner Radius

TUNGALOY RNGN45-T1 TS200 Milling Insert Round SiAlON Ceramic 0.250 Corner Radius

ANSI: RNGN45-T1 TS200

ISO: RNGN45-T1 TS200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6158923
Delivery date: 3-5 days
$29.87

Cutting Edge Definition

Ceramic Inserts are indexable inserts made from Aluminium Oxide Al2O3 or Silicon Nitride Si3N4. They have a hardness of 2,100-2,500 HV (About 40% above carbide), which enables them to machine Hard Steel up to 55 HRC. It can also machine cast iron and nickel-based alloys six times faster compared to coated carbide inserts. Wisker fiber available to get the best toughness.

Grade and Coating Description

SiAlON ceramic grades that are designed to perform high-speed turning operations of HRSAs common in aerospace, power generation and oil and gas industries. The TS200 is suitable for finishing processes

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 10
Insert/Tool Insert
Application Milling Insert
Coating SiAlON
Grade TS200
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.2500 6.35MM
Insert Size Ic 45
Cut Rating High Temp, Stainless Steel, Titanium
Depth Of Cut Max 0.0790
Cutting & Machining Properties
Cutting Edge Mat Ceramic
Insert Shape/Cutter Pocket Shape Round
Insert Style RN
