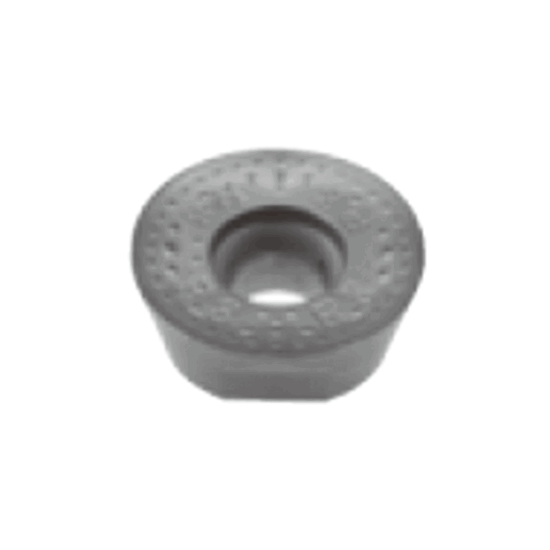

Picture of TUNGALOY RDMT1606ZDPN-MJ AH330 Milling Insert Round AlTiN Carbide 0.315 Corner Radius

TUNGALOY RDMT1606ZDPN-MJ AH330 Milling Insert Round AlTiN Carbide 0.315 Corner Radius

ANSI: RDMT1606ZDPN-MJ AH330

ISO: RDMT1606ZDPN-MJ AH330

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805884
Delivery date: 3-5 days
$13.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

PVD coated grade for steels and stainless steels

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Grade AH330
Coating AlTiN
Insert Application Roughing, Semi Finishing
Package Size 10
Insert/Tool Insert
Application Milling Insert
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16
Depth Of Cut Max 0.3150
Cut Rating <40HRC Steel, Ductile Iron
Corner Radius 0.3150 8.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Cutting Edge Mat Carbide
Insert Style RD
