  • TUNGALOY PWLNR164-CHP Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

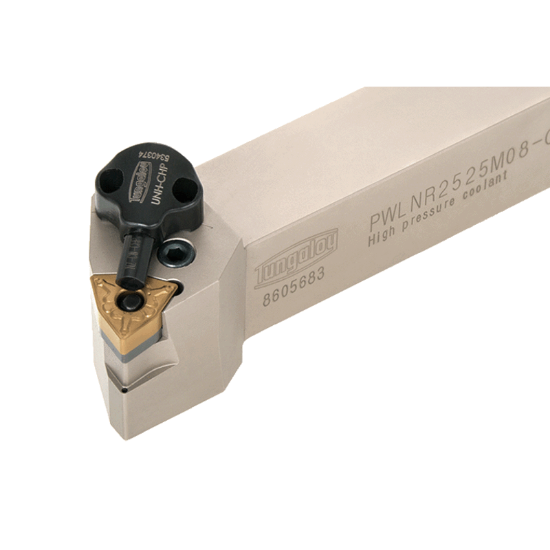

Picture of TUNGALOY PWLNR164-CHP Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

TUNGALOY PWLNR164-CHP Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 1.000 Shank

ANSI: PWLNR164-CHP

ISO: PWLNR164-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755251
Delivery date: 3-5 days
$308.50

Important Notes

Neg,L style, 95deg Approach

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg trigon inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 12 "43"
Lead Angle 95°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style WN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern External
