  • TUNGALOY PWLNR1633-CHP Stick Tool Trigon Insert EcoTurn Toolholders , Neg,L style, 95deg Approach , Steel Square 1.000 Shank

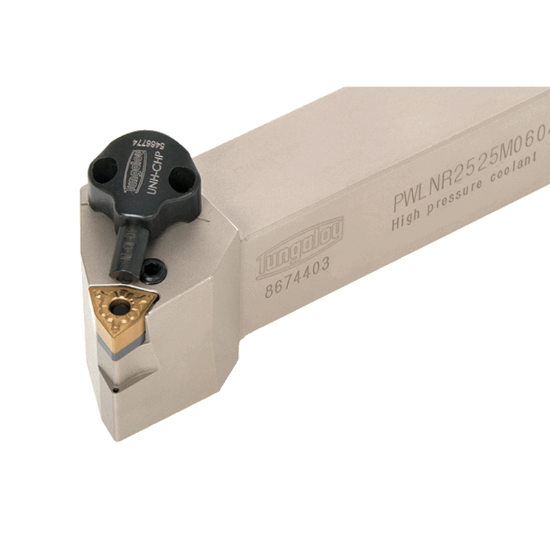

Picture of TUNGALOY PWLNR1633-CHP Stick Tool Trigon Insert EcoTurn Toolholders , Neg,L style, 95deg Approach , Steel Square 1.000 Shank

TUNGALOY PWLNR1633-CHP Stick Tool Trigon Insert EcoTurn Toolholders , Neg,L style, 95deg Approach , Steel Square 1.000 Shank

ANSI: PWLNR1633-CHP

ISO: PWLNR1633-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755247
Delivery date: 3-5 days
$308.50

Important Notes

EcoTurn Toolholders Neg,L style, 95deg Approach

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg trigon inserts WN**33..., with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 06 "33"
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Hand R/L Right
