  • TUNGALOY PWLNR124-CHP Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.750 Shank

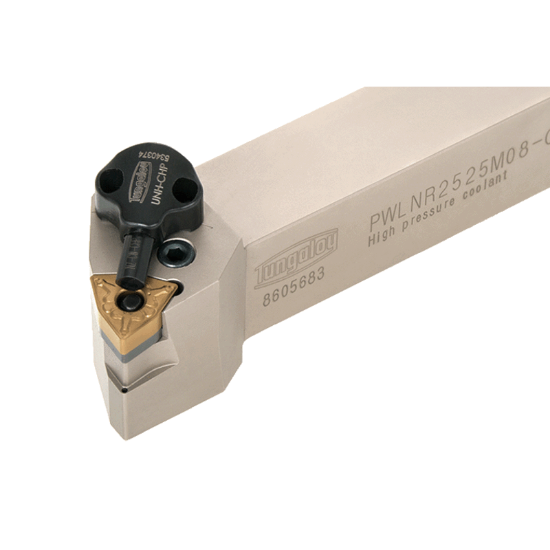

Picture of TUNGALOY PWLNR124-CHP Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.750 Shank

TUNGALOY PWLNR124-CHP Stick Tool Trigon Insert Neg,L style, 95deg Approach , Steel Square 0.750 Shank

ANSI: PWLNR124-CHP

ISO: PWLNR124-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755249
Delivery date: 3-5 days
$274.10

Important Notes

Neg,L style, 95deg Approach

Details

Lever lock type toolholder with 95deg approach angle, for negative 80deg trigon inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.5000 114.30MM
Lead Angle 95°
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern External
Hand R/L Right
Insert Style WN
