  • TUNGALOY PVQNL123-CHP Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.750 Shank

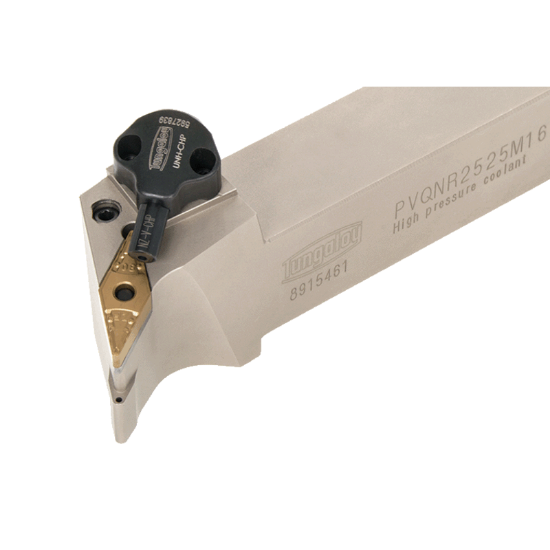

Picture of TUNGALOY PVQNL123-CHP Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.750 Shank

TUNGALOY PVQNL123-CHP Stick Tool 35.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.750 Shank

ANSI: PVQNL123-CHP

ISO: PVQNL123-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755258
Delivery date: 3-5 days
$383.15

Important Notes

Neg,Q/H style, 45deg Approach

Details

Lever lock type toolholder with 117.5deg approach angle, for negative 35deg or 25deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.5000 114.30MM
Machine Side Connection Size 0.7500 19.05MM
Clearance Angle 25.0°
Lead Angle 117.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VN
