  • TUNGALOY PVJNR2525M16-CHP Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

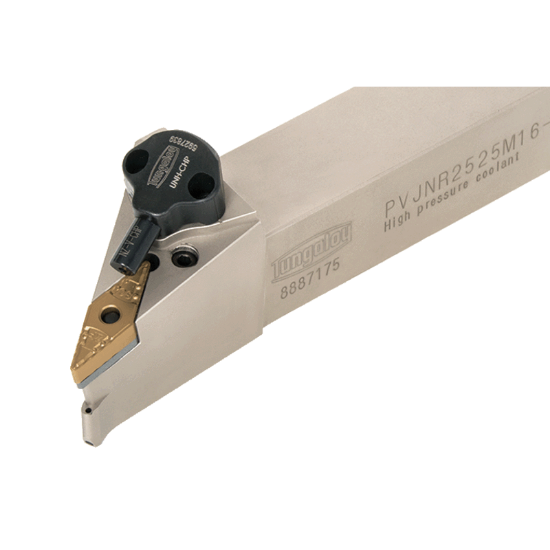

Picture of TUNGALOY PVJNR2525M16-CHP Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY PVJNR2525M16-CHP Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: PVJNR2525M16-CHP

ISO: PVJNR2525M16-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755224
Delivery date: 3-5 days
$431.75

Important Notes

Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 35deg or 25deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Lead Angle 93°
Overall Len 5.9055 150.00MM
Clearance Angle 50.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.9843 25.00MM
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Style VN
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
