  • TUNGALOY PVJNR2525M1204-CHP Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.984 Shank

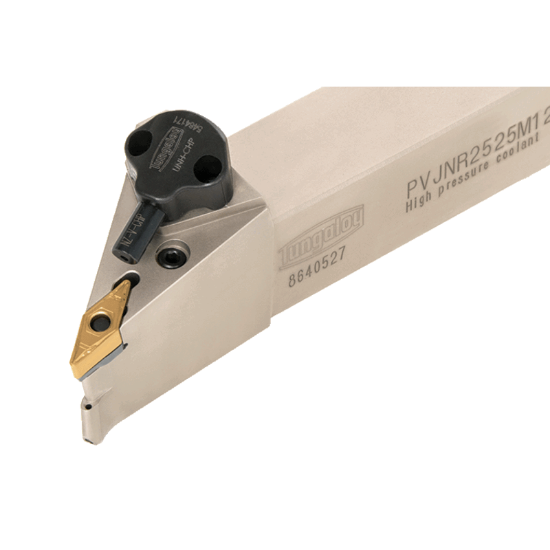

Picture of TUNGALOY PVJNR2525M1204-CHP Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.984 Shank

TUNGALOY PVJNR2525M1204-CHP Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 0.984 Shank

ANSI: PVJNR2525M1204-CHP

ISO: PVJNR2525M1204-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6751020
Delivery date: 3-5 days
$431.75

Important Notes

EcoTurn Toolholders Neg,J style, 93deg Approach

Details

Lever lock type toolholders with 93deg approach angle for negative 35deg rhombic inserts VN**1204... with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Overall Len 5.9055 150.00MM
Shank/Pilot Dia 0.9843 25.00MM
Clearance Angle 50.0°
Insert Size Ic 12 "2.3"
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Inter/Extern External
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Right
