  • TUNGALOY PVJNR162.33-CHP Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 1.000 Shank

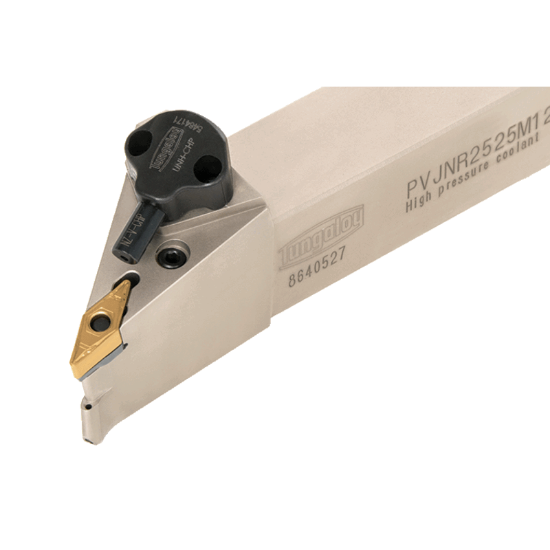

Picture of TUNGALOY PVJNR162.33-CHP Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 1.000 Shank

TUNGALOY PVJNR162.33-CHP Stick Tool 35.0° Insert EcoTurn Toolholders , Neg,J style, 93deg Approach , Steel Square 1.000 Shank

ANSI: PVJNR162.33-CHP

ISO: PVJNR162.33-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6759391
Delivery date: 3-5 days
$431.75

Important Notes

EcoTurn Toolholders Neg,J style, 93deg Approach

Details

Lever lock type toolholders with 93deg approach angle for negative 35deg rhombic inserts VN**2.33... with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 12 "2.3"
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 50.0°
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VN
