  • TUNGALOY PVJNR123-CHP Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

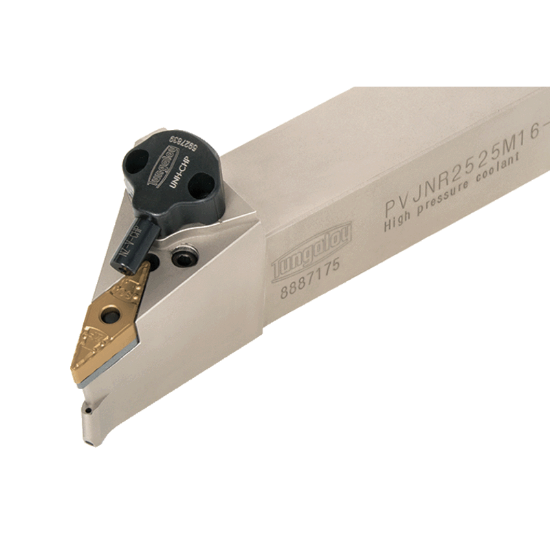

Picture of TUNGALOY PVJNR123-CHP Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

TUNGALOY PVJNR123-CHP Stick Tool 35.0° Insert Neg,J style, 93deg Approach , Steel Square 0.750 Shank

ANSI: PVJNR123-CHP

ISO: PVJNR123-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755253
Delivery date: 3-5 days
$383.15

Important Notes

Neg,J style, 93deg Approach

Details

Lever lock type toolholder with 93deg approach angle, for negative 35deg or 25deg rhombic inserts, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Clearance Angle 50.0°
Overall Len 4.5000 114.30MM
Insert Size Ic 16 "33"
Lead Angle 93°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style VN
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
