  • TUNGALOY PTGNR123-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 0.750 Shank

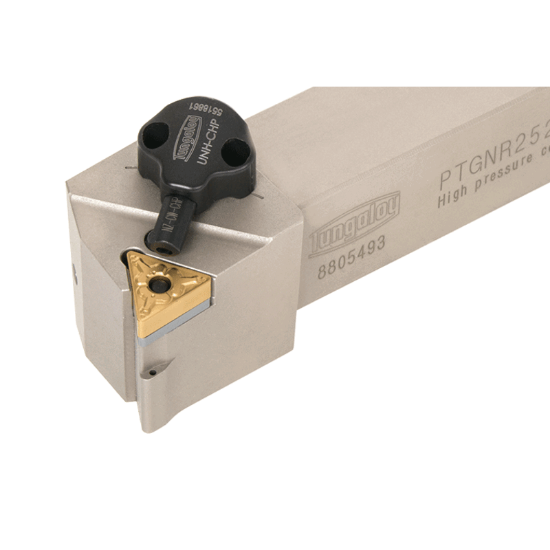

Picture of TUNGALOY PTGNR123-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 0.750 Shank

TUNGALOY PTGNR123-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 0.750 Shank

ANSI: PTGNR123-CHP

ISO: PTGNR123-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755241
Delivery date: 3-5 days
$274.10

Important Notes

Neg,G style, 91deg Approach

Details

Lever lock type toolholder with 91deg approach angle, for negative triangle inserts TN**33*, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Lead Angle 91°
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style TN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
