  • TUNGALOY PTGNL163-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 1.000 Shank

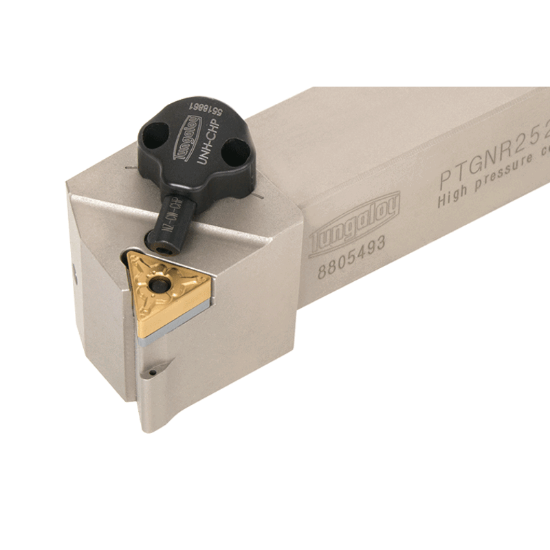

Picture of TUNGALOY PTGNL163-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 1.000 Shank

TUNGALOY PTGNL163-CHP Stick Tool Triangle Insert Neg,G style, 91deg Approach , Steel Square 1.000 Shank

ANSI: PTGNL163-CHP

ISO: PTGNL163-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755244
Delivery date: 3-5 days
$308.50

Important Notes

Neg,G style, 91deg Approach

Details

Lever lock type toolholder with 91deg approach angle, for negative triangle inserts TN**33*, with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 16 "33"
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 91°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style TN
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape Triangle
