  • TUNGALOY PTGNL1223-CHP Stick Tool Triangle Insert EcoTurn Toolholders , Neg,G style, 91deg Approach , Steel Square 0.750 Shank

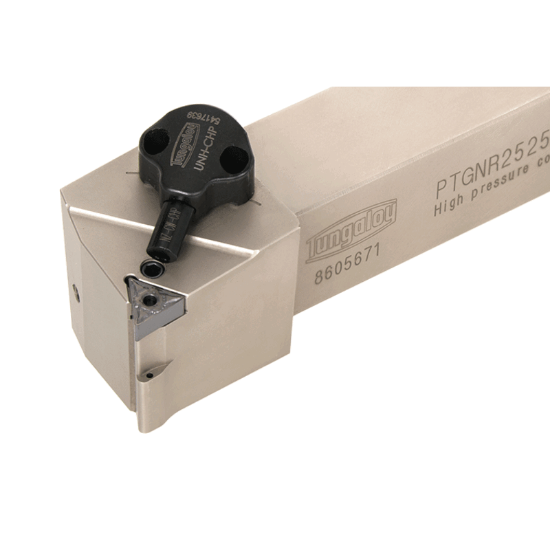

Picture of TUNGALOY PTGNL1223-CHP Stick Tool Triangle Insert EcoTurn Toolholders , Neg,G style, 91deg Approach , Steel Square 0.750 Shank

TUNGALOY PTGNL1223-CHP Stick Tool Triangle Insert EcoTurn Toolholders , Neg,G style, 91deg Approach , Steel Square 0.750 Shank

ANSI: PTGNL1223-CHP

ISO: PTGNL1223-CHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6755238
Delivery date: 3-5 days
$274.10

Important Notes

EcoTurn Toolholders Neg,G style, 91deg Approach

Details

Lever lock type toolholder with 91deg approach angle, for negative triangle inserts TN**23..., with channels for high pressure coolant

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Application Ext.Turning
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 16 "33"
Lead Angle 91°
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Style TN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
