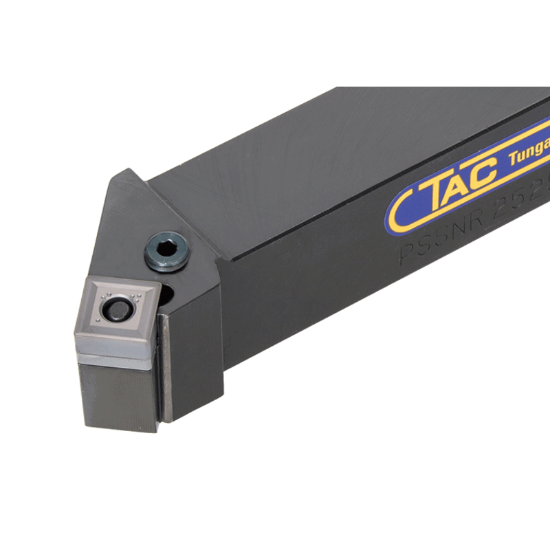

Picture of TUNGALOY PSSNR1616 Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.629 Shank

TUNGALOY PSSNR1616 Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.629 Shank

ANSI: PSSNR1616

ISO: PSSNR1616

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805706
Delivery date: 3-5 days
$80.75

Important Notes

Neg,S style, 45deg Approach

Details

Lever lock type toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 45°
Insert Size Ic 09 "32"
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 40.0°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Overall Len 3.7008 94.00MM
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Inter/Extern External
