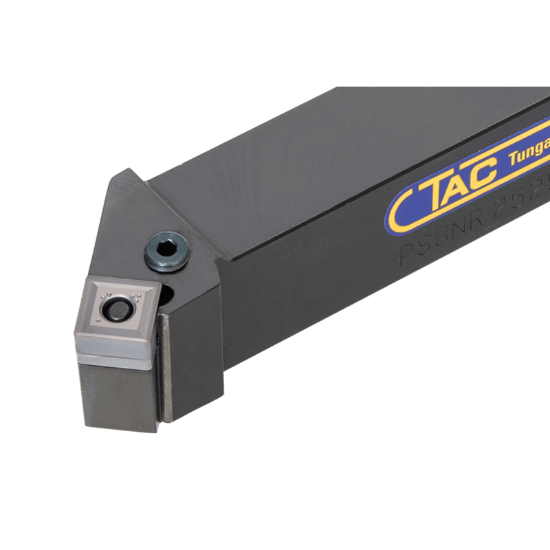

Picture of TUNGALOY PSSNL1616 Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.629 Shank

TUNGALOY PSSNL1616 Stick Tool Square Insert Neg,S style, 45deg Approach , Steel Square 0.629 Shank

ANSI: PSSNL1616

ISO: PSSNL1616

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805699
Delivery date: 3-5 days
$80.75

Important Notes

Neg,S style, 45deg Approach

Details

Lever lock type toolholder with 45deg approach angle (S-style), for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 09 "32"
Machine Side Connection Type Stick Tool
Tool Material Steel
Lead Angle 45°
Overall Len 3.7008 94.00MM
Clearance Angle 40.0°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Style SN
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
