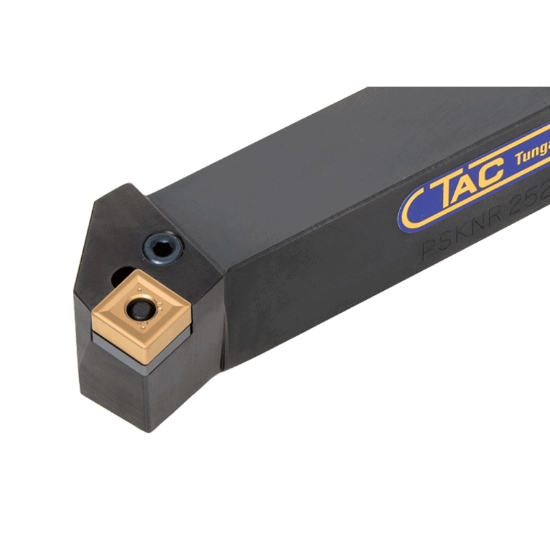

Picture of TUNGALOY PSKNR2020 Stick Tool Square Insert Neg,K style, 75deg Approach , Steel Square 0.787 Shank

TUNGALOY PSKNR2020 Stick Tool Square Insert Neg,K style, 75deg Approach , Steel Square 0.787 Shank

ANSI: PSKNR2020

ISO: PSKNR2020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805690
Delivery date: 3-5 days
$85.30

Important Notes

Neg,K style, 75deg Approach

Details

Lever lock type toolholder with 75deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Made In USA No
Dimensional Specifications
Clearance Angle 10.0°
Lead Angle 75° F
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.9213 125.00MM
Insert Size Ic 12 "43"
Machine Side Connection Size 0.7874 20.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Inter/Extern External
Insert Style SN
Hand R/L Right
