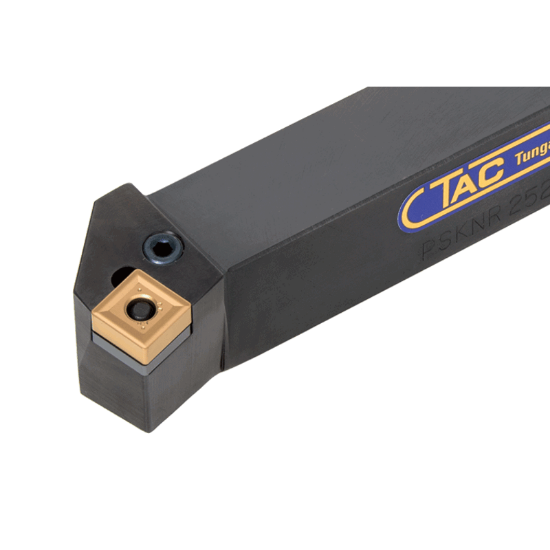

Picture of TUNGALOY PSKNL1616 Stick Tool Square Insert Neg,K style, 75deg Approach , Steel Square 0.629 Shank

TUNGALOY PSKNL1616 Stick Tool Square Insert Neg,K style, 75deg Approach , Steel Square 0.629 Shank

ANSI: PSKNL1616

ISO: PSKNL1616

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805682
Delivery date: 3-5 days
$80.75

Important Notes

Neg,K style, 75deg Approach

Details

Lever lock type toolholder with 75deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 75° F
Clearance Angle 10.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9370 100.00MM
Insert Size Ic 09 "32"
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Left
Insert Style SN
