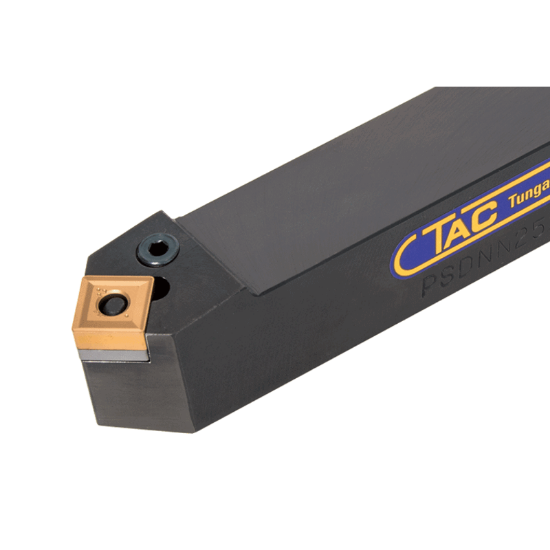

Picture of TUNGALOY PSDNN2525 Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY PSDNN2525 Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.984 Shank

ANSI: PSDNN2525

ISO: PSDNN2525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805680
Delivery date: 3-5 days
$96.00

Important Notes

Neg,D style, 45deg Approach

Details

Lever lock type toolholder with 45deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Lead Angle 45°
Shank/Pilot Dia 0.9843 25.00MM
Clearance Angle 40.0°
Overall Len 5.9055 150.00MM
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Style SN
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Neutral
