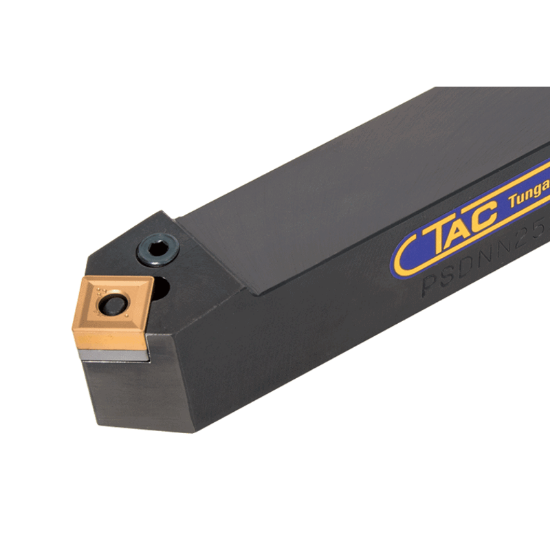

Picture of TUNGALOY PSDNN1616 Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.629 Shank

TUNGALOY PSDNN1616 Stick Tool Square Insert Neg,D style, 45deg Approach , Steel Square 0.629 Shank

ANSI: PSDNN1616

ISO: PSDNN1616

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805678
Delivery date: 3-5 days
$80.75

Important Notes

Neg,D style, 45deg Approach

Details

Lever lock type toolholder with 45deg approach angle, for negative square inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Clearance Angle 40.0°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 09 "32"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9370 100.00MM
Lead Angle 45°
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Hand R/L Neutral
Inter/Extern External
