  • TUNGALOY PES1535R Milling Cutter 90.0° 1.378 Cutter Diameter Cylindrical Shank1.2598 6.299 OAL 2 Flute

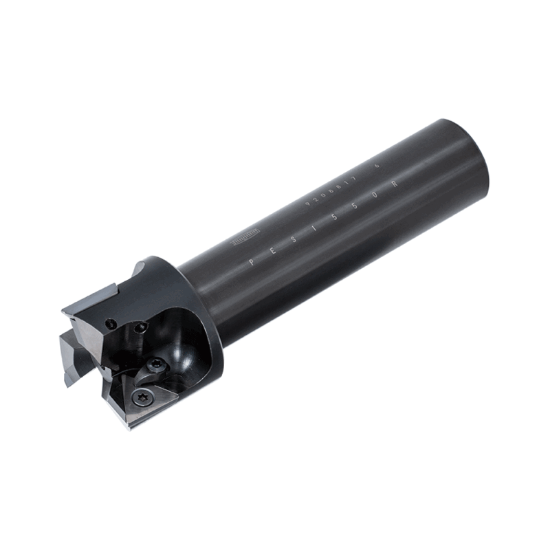

Picture of TUNGALOY PES1535R Milling Cutter 90.0° 1.378 Cutter Diameter Cylindrical Shank1.2598 6.299 OAL 2 Flute

TUNGALOY PES1535R Milling Cutter 90.0° 1.378 Cutter Diameter Cylindrical Shank1.2598 6.299 OAL 2 Flute

ANSI: PES1535R

ISO: PES1535R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6805643
Delivery date: 3-5 days
$318.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling
Insert/Tool Tool
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 6.2992 160.00MM
Insert Size Ic 43
Depth Of Cut Max 0.0039
Cut Dia Min 1.3780 35.00MM
Flutes/Inserts 2
Cutter Dia 1.3780 35.00MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Hand R/L Right
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge 6802496
Clamp Screw 6802547
